Multiple Car Wash Entry Systems Available

Portal TI Pay System

The Portal TI® automated payment system from Unitec Electronics features an award-winning design and easy-to-use customer interface. The Portal minimizes the consumer’s reach for a simple and efficient transaction.

The Portal TI has multiple payment options, a large color graphics screen and multi-level security features. Customizable graphics panels, programmable receipt messages, greeting banners, and video clips provide a multitude of marketing and advertising opportunities. Additionally, the unit has easy-to-access reporting capabilities for optimal site management

Key Features

  • Windows® POSReady operating system
  • EMV and Contactless payment solutions (optional)
  • IDX multi-coin acceptor, programmable for up to 6 types of coins or tokens
  • Rollover and tunnel compatible
  • High speed thermal printer (text & graphics)
  • with programmable receipt messages
  • Ultrasonic proximity sensor (for customer presence recognition)
  • Integrated alarm system with battery back-up
  • Integrated heater and heat exchanger
  • Heavy wall (.104”) case with high-security locks and separately keyed cash compartment
  • Visa®, MasterCard®, American Express® and Discover® acceptance via Internet credit card clearing system
  • Two outdoor-rated 5W speakers

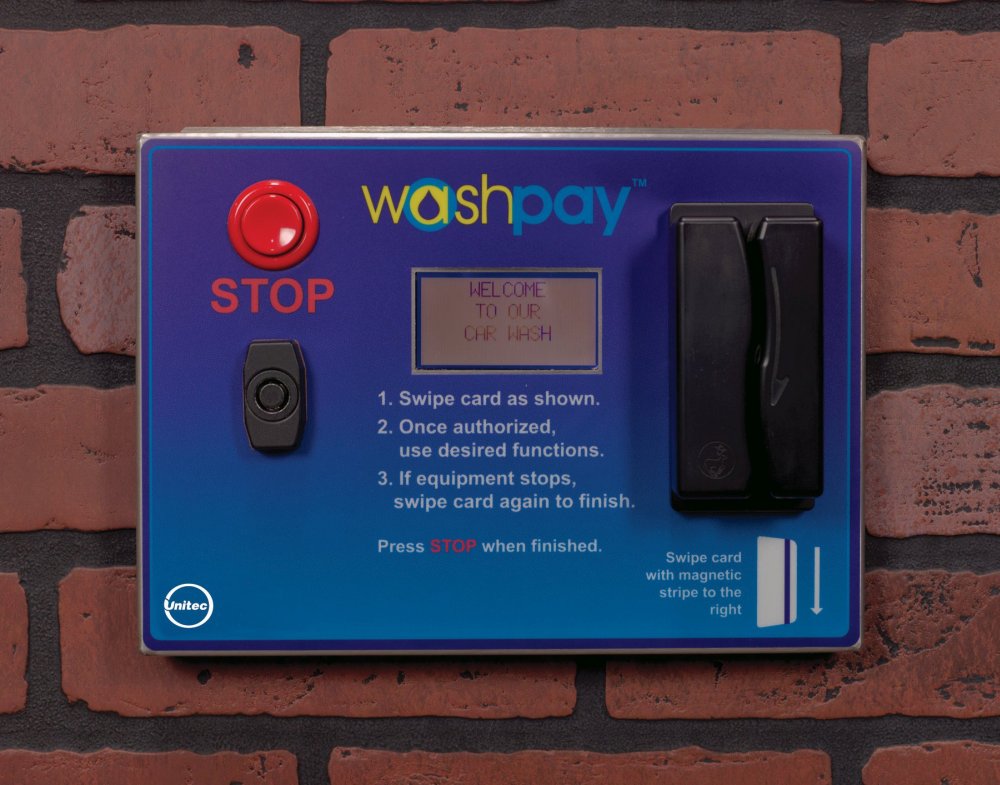

WashPay®

Unitec WashPay System

Unitec’s WashPay™ Site Management System allows wash owners to accept credit cards in self-serve bays. Use of the WashPay Card Terminal increases the amount of time customers spend in the bay compared to cash customers, thus maximizing the site’s profits. An optional receipt printer is also available.

With WashPay, wash owners can remotely monitor and configure their bays as well as view sales and equipment usage reports. Multiple purchases by a customer may be combined into one transaction, minimizing credit card transaction fees. To attract new customers and easily monitor your site, add WashPay to your new or existing location!


Key Features

The WashPay Site Management System consists of card terminals, a central site controller and a networking kit. Optional components include a customer receipt printer, credit dial appliance (not required for Internet credit card processing) and a User Interface Kit for the site controller.
  • WashPay Card Terminal
  • Connects to self-serve equipment timer to add card payment and cash monitoring
  • Large-character LCD display n Dimensions: 7.12” H x
  • 10.12” W x 4.09” D
  • Weight: 10.55 lbs.
  • Power: 24 VAC, 1.5 Amps (max)
  • Site Controller
  • Available in 2 versions: Wall- mounted (for equipment room installations) and a Basic version (for environmentally-controlled areas)
  • Both models include a network router with ports for a local PC and Broadband modem
  • Power: 120 VAC, 2.5 Amps (max)
  • The controller should be powered from a UPS. The UPS should be rated at 400 VA or higher and include surge protection for the power and phone/broadband connections
  • Wall-mounted version is packaged in NEMA 12 enclosure
  • 16-port Ethernet switch available n Wall-mount specs:
  • Dimensions: 20” W x 16” H x 7” D
  • Weight: 36 lbs.
  • Basic version specs:
  • Dimensions: 11.6” W x 10.8” H x 2.5” D Weight: 7 lbs.
  • Stainless steel enclosure with waterproof
  • card reader
  • WashPay Receipt Printer
  • Wall-mount design; requires rear access (for paper loading and service)
  • Customer-activated printer for outdoor installation; suitable for unattended sites
  • Dimensions:
  • Enclosure: 7”W x 16”H x 12”D Front Panel: 10” W x 19” H Weight: 28.80 lbs.
  • Power: 120 VAC, 1.8 Amps (max)
  • User Interface Kit
  • Allows site controller to be used as a management computer (when an onsite computer is not available)
  • Includes a 15-inch LCD monitor, keyboard and mouse
Customer Convenience

The WashPay card terminal accepts most major credit cards in self-serve bays through dial-up or internet-based processing. Research shows that those paying with a credit card tend to spend more time in the car wash bay than those who pay with cash.

Flexibility

WashPay’s expansive memory allows storage of over 100,000 house accounts. A number of optional components are available, including a customer receipt printer and credit dial appliance.

Marketing Options

VIP Wash Pass cards allow car wash owners to offer gift cards and postpaid fleet accounts. A new bonus time feature rewards customers with free time after their purchase reaches a specific (qualifying) value.

Efficiency

The WashPay site management system is capable of monitoring cash all payments received at automatic and self-serve bays through an internet application that is accessible on-site or remotely. This, along with consolidated reporting functions, provide the benefits of real-time data on revenue generated and cash collected. Site owners can also be notified via pager or email in the event that a system warning or faulty event occurs, allowing for issues to be identified and resolved immediately.

Durability

The WashPay is protected with a stainless steel enclosure that features a waterproof card reader.

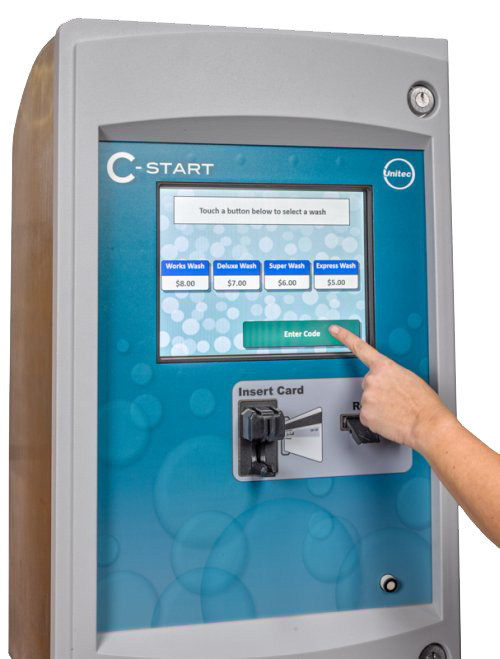

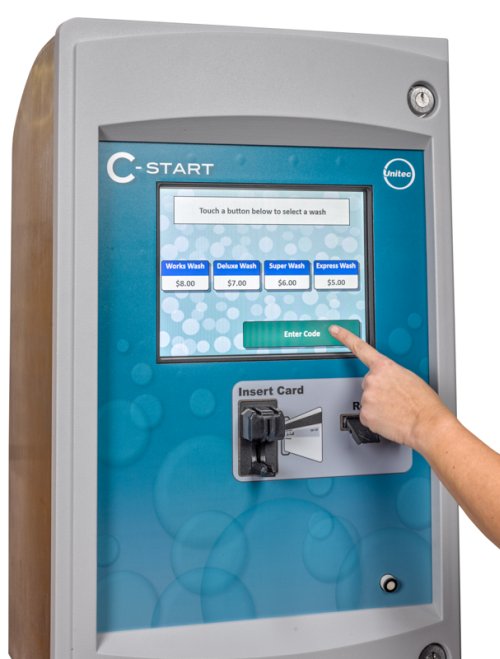

C-Start®

Unitec  System
The C-Start was designed to simplify the transaction experience for car wash customers. The unit works with in-bay automatic or conveyor car wash systems and is the right choice for operators who wish to automate payment processes: the cashless unit accepts credit cards or wash codes. C-Start is a smart and efficient choice for petroleum market operators.

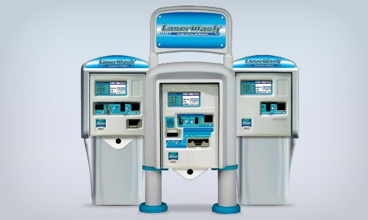

Access Unit

Unitec  System

  • Industry's Most Secure Vault
  • Accepts Cash, Credit Cards, Loyalty Cards, Codes, & Tokens
  • Dispenses Change in $1 Bills
  • Customer Loyalty System option
  • RFID System option
  • Built-in Web Interface for Updating, Reporting & Monitoring

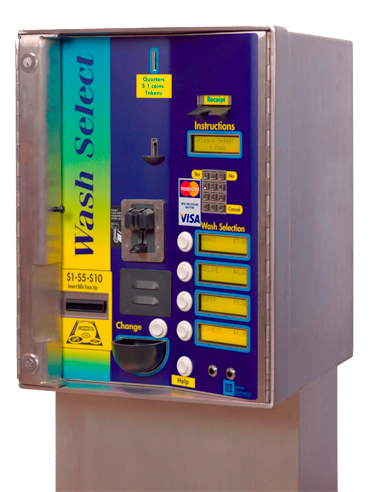

Wash Select II®

Unitec  System
The Wash Select II is a premium entry system for the unattended automatic car wash market. As the leading car wash entry system for the petroleum market, its patented, ergonomically-designed front features daylight-readable LCD displays that guide customers through the car wash payment process while promoting the purchase of upgrades.
